Taranis X9E: FM7 bug and workaround

A user of my F3J setup recently reported an odd issue with his Taranis X9E: there was no voice confirmation when switching into a particular flight mode. My initial thoughts were that it was an errant sound file.

However it soon became clear that the cause was a bug with the 'FM' switches in OpenTx. Fortunately there's a workaround which I've incorporated in F3J version 3.0.1. The workaround is compatible with all supported transmitters. More details below.

Problem description

In version 3.0.0 of the F3J setup, a track is played when Speed mode (FM7) is engaged. This works fine on the X9D and Horus, however on the X9E it's not possible to specify FM7 - if you try to select it via the user interface, it immediately changes to '!FM7'. An issue has been raised on Github.

SF9 triggered by FM7, but due to a bug it cannot be used with X9E

The workaround

The workaround involves creating a logical switch (L13) to emulate FM7. It returns TRUE if FM0 - FM6 are all FALSE. In other words, if all flight modes 1 to 6 are not active, then flight mode 7 must be active. (Flight mode 8 is ignored since it's not used in this setup.) When used in a special function, L13 triggers an action on a FALSE to TRUE transition, just like the other FMx switches.

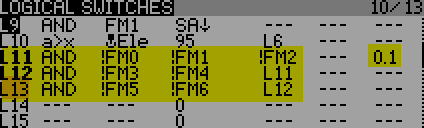

L13 emulates buggy FM7.  Delay of 0.1 sec suppresses True at startup.
SF9 with FM7 replaced by L13

The workaround is incorporated in F3J version 3.0.1.
